| AK4432 32位立體聲數字音頻系統DAC解決方案 |
|
|
| 文章來源： 更新時間：2015/8/29 11:11:00 |
在線咨詢： |
| |
AKM公司的AK4432是用于數字音頻系統的32位立體聲數模轉換器(DAC),集成了32位高音質低群時延的數字濾波器,THD+N為91dB,128倍過取樣,主要用在汽車和家庭影院音頻環繞聲系統.本文介紹了AK4432主要特性,框圖,以及評估板AKD4432-SA功能,框圖,元件分布圖和電路圖.
The AK4432 is a 32-bit Stereo DAC which corresponds to digital audio systems. An internal circuitincludes newly developed 32-bit Digital Filter achieving short group delay and high quality sound. TheAK4432 has single end SCF outputs, increasing performance for systems with excessive clock jitter. TheAK4432 is ideal for a wide range of applications that demands high sound quality including Home Theaterand Car audio surround systems. It is housed in a 16-pin TSSOP package, saving more board space.
AK4432主要特性:
1. 2ch 32bit DAC
- 128 times Oversampling
- 32-bit High Quality Sound Low Group Delay Digital Filter
- Single Ended Output, Smoothing Filter
- THD+N: 91dB
- DR, S/N: 108dB
- Channel Isolation Digital Volume (12dB～-115dB, 0.5dB Step, Mute)
- Soft Mute
- De-emphasis Filter (32kHz, 44.1kHz, 48kHz)
- I/F Format: MSB justified, LSB justified, I2S, TDM
- Zero Detection
2. Sampling Frequency
- Normal Speed Mode: 8kHz to 48kHz
- Double Speed Mode: 64kHz to 96kHz
- Quad Speed Mode: 128kHz to 192kHz
3. Master Clock
256fs, 384fs, 512fs or 768fs (Normal Speed Mode: fs=8kHz 48kHz)
256fs or 384fs (Double Speed Mode: fs=48kHz 96kHz)
128fs or 192fs (Quad Speed Mode: fs=96kHz 192kHz)
4. P Interface: 3-wire Serial (7MHz max)/ I2C bus (400kHz Mode, 1MHz Mode)
5. Power Supply
- Analog: AVDD = 3.0 3.6V
- Input/Output Buffer: LVDD = 3.0 3.6V
- Integrated LDO for Digital Power Supply
6. Power Consumptions: 7.8mA (fs=48kHz)
7. Operational Temperature: Ta = - 40 105℃
8. Package: 16-pin TSSOP (0.65mm pitch)

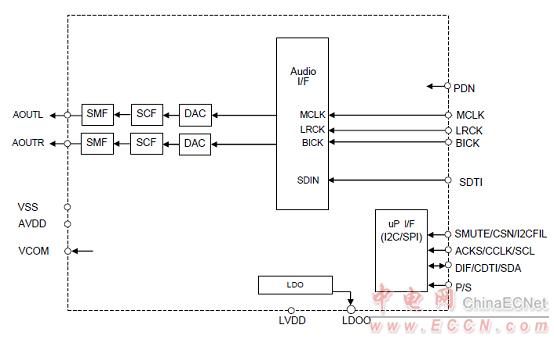

圖1.AK4432框圖
評估板AKD4432-SA
The AKD4432-SA is an evaluation board for the AK4432 (32-bit 2ch DAC) , allowing quick evaluationwith digital audio interface.
評估板AKD4432-SA功能:
3 type digital audio interface
- Optical input
- BNC input
- External input
2ch Analog outputs
USB Port for Serial control

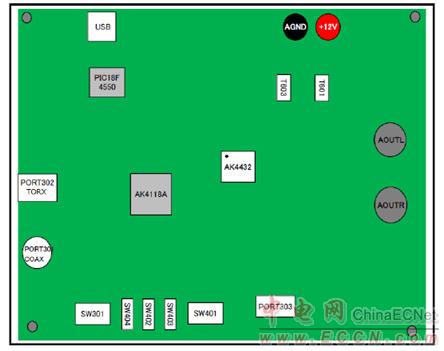

圖2.評估板AKD4432-SA元件分布框圖
圖3.評估板AKD4432-SA框圖

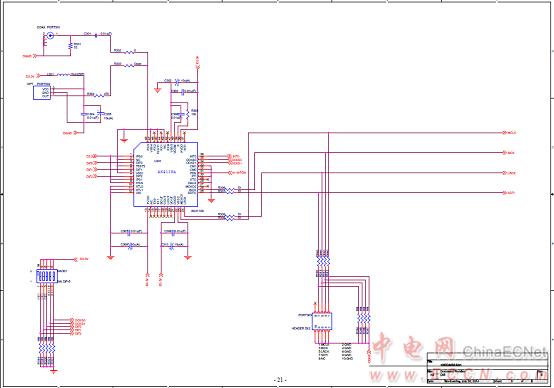

圖4.評估板AKD4432-SA電路圖(1)

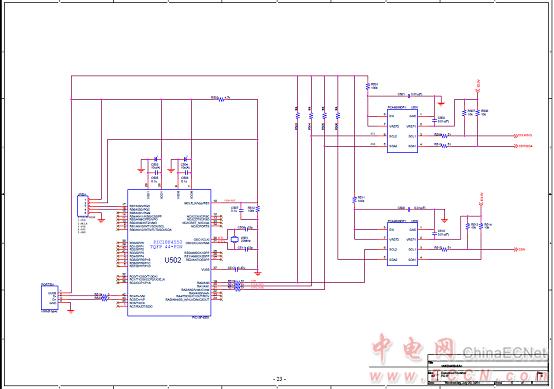

圖5.評估板AKD4432-SA電路圖(2)

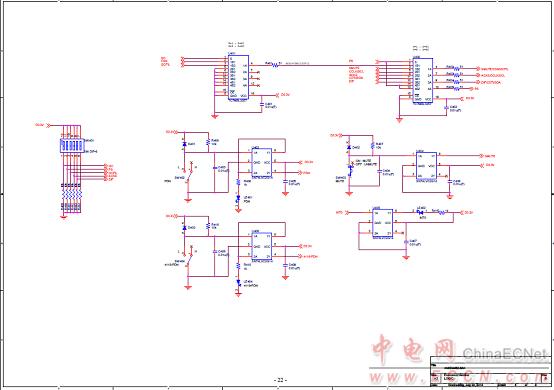

圖6.評估板AKD4432-SA電路圖(3)

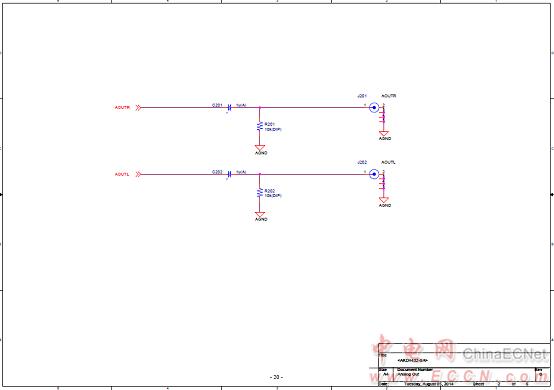

圖7.評估板AKD4432-SA電路圖(4)

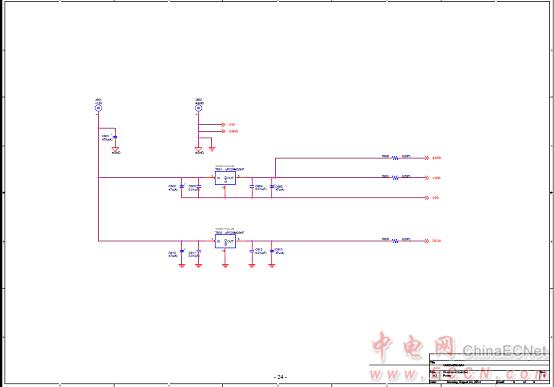

圖8.評估板AKD4432-SA電路圖(5)
圖9.評估板AKD4432-SA電路圖(6) |
| |
|
|
|
|
|
| |
|
| |
|
|
