ILD4001 7W MR16 LED燈驅動方案

文章來源：更新時間：2015/12/7 11:44:00

在線咨詢：

張順平 3003262363

張代明 3003290139

鄢先輝 2850985542

13713728695

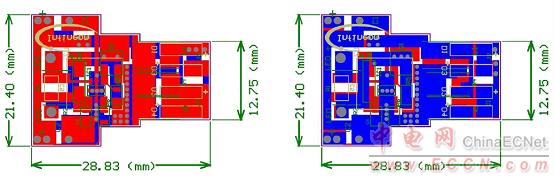

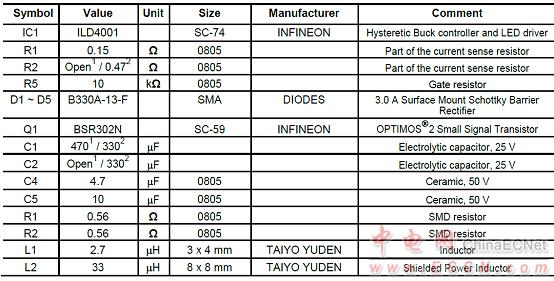

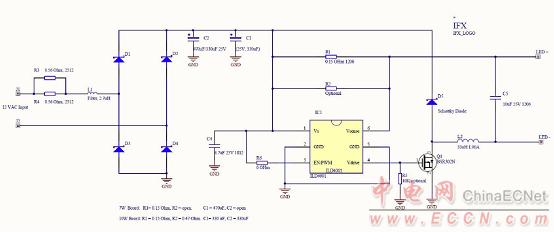

Infineon公司的ILD4001是用來驅動室內和戶外大功率LED的滯后降壓LED控制器,可驅動外接MOSFET功率晶體管,LED驅動電流可達350mA到3A,電源電壓高達42V,采用DC電壓或PWM信號進行調光.本文介紹了ILD4001主要特性,框圖和應用框圖,以及7W/10WMR16 LED燈驅動板主要特性,電路圖,材料清單和PCB設計圖.
The ILD4001 is a hysteretic buck LED controller IC for driving high power LEDs in indoor and outdoor lightingapplications.
The LED controller is capable of driving an external MOSFET power transistor with the internal push-pull outputstage to achieve LED currents of 350 mA up to 3 A and more depending on the dimensioning of the MOSFET, thethermal budget of the circuit board and the current sense resistor.
The ILD4001 is widely suitable for LED applications with supply voltages up to 42 V. A multifunctional enable pinallows dimming of the LEDs with DC voltage or a PWM signal. Furthermore the enable pin can be used to switchthe LED controller on and off to minimize power consumption in standby.
The ILD4001 incorporates an integrated thermal shutdown function pulling low the Vdrive output signal once thejunction temperature exceeds the threshold temperature. Once the junction temperature drops below thethreshold temperature the Vdrive output is activated again.
To provide maximum design flexibility, the ILD4001 is housed in a small SC-74 package.

ILD4001主要特性:
• Wide input voltage range: 4.5 V ... 42 V
• Capable to drive N-channel MOSFETs that provide up to 3 A outputcurrent and up to 98% efficiency
• Temperature shut down mechanism
• Switching frequency up to 500 kHz
• Analog and PWM dimming possible
• Typical 3 % output current accuracy
• Very low LED current drift over temperature
• Minimum external component required
• Small package: SC-74

ILD4001應用:
• LED controller for indoor and outdoor illumination
• LED replacement lamps, e.g. MR16 halogen replacement
• Retail, office and residential high power luminaires
• Architectural lighting
• Downlights and light engines
• Appliances, e.g. fridge / freezer

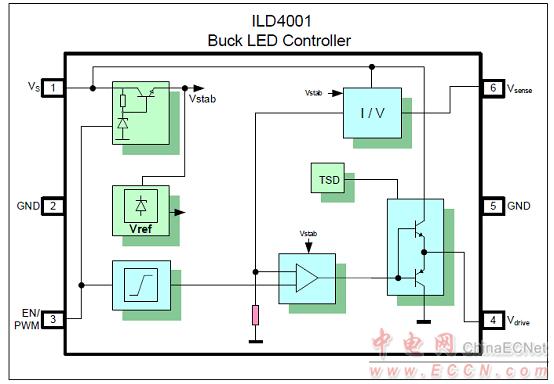

圖1. ILD4001框圖

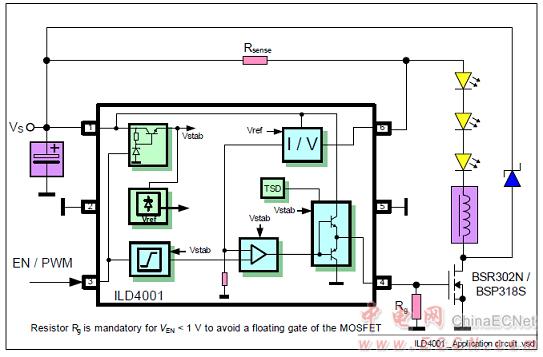

圖2. ILD4001應用框圖

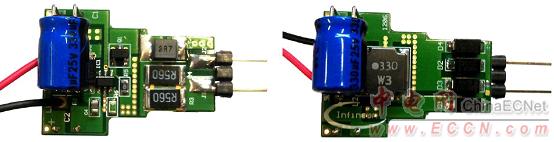

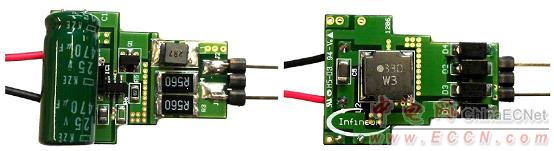

This document contains the information about the demo board with the device ILD4001 LED driver which is suitable for the use in an MR16 lamp.
ILD4001 is a hysteretic buck LED controller IC for industrial applications.
The demo board has two input connections to be powered up by 12 VAC from electronic transformer, and two output connections to the LED. The boards are preset to deliver 7 W or 10 W powers into the LED load.
These MR16 boards are suitable and tested to drive 2 LEDs in series and 4 LEDs (2 LEDs in series and 2 in parallel). For 4 LEDs design, it is recommended to use the LED with the same forward voltage to ensure the current matching for the LEDs in parallel.

MR16 LED燈驅動板主要特性:
 Deliver 7 W / 10 W power 
 Temperature shut down mechanism 
 Compatible with electronic transformer 
 Low LED current drift over temperature 
 Integrated push-pull stage for fast on/off switching 
 Minimum external component required 
 Small package: SC-74 
