| MAX98358 數字PDM輸入D類放大器解決方案 |
|
|
| 文章來源： 更新時間：2017/5/8 13:46:00 |
在線咨詢： |
| |
Maxim公司的MAX98358是脈沖密度調制(PDM)數字輸入D類放大器,提供AB類音頻性能和D類效率,可選擇增益設定(3dB, 6dB, 9dB, 12dB和15dB),單電源2.5V- 5.5V,5V時4Ω輸出功率3.2W,效率92%(RL = 8Ω, POUT = 1.5W),1kHz時的THD+N為0.015%,增益為6dB時的輸出噪音29μVRMS,主要用在筆記本電腦,手機,平板電腦和手持媒體播放器(PMP).本文介紹了MAX98358主要特性和簡化框圖,立體聲工作電路圖以及音頻接口板AUDINT1主要特性,簡化EV系統(tǒng)框圖,電路圖,材料清單和PCB設計圖.
The MAX98358 is a digital pulse-density modulated (PDM) input Class D power amplifier that provides Class AB audio performance with Class D efficiency. This IC offers five selectable gain settings (3dB, 6dB, 9dB, 12dB, and 15dB) set by a single gain-select input (GAIN). The IC can be configured to produce a left channel, right channel,or (left/2 + right/2) output from the stereo input data.
The MAX98358 takes a stereo pulse density modulated (SPDM) input signal directly into the DAC. Data on the rising edge of PDM_CLK is considered left-channel data while data on the falling PDM_CLK edge is right channel. A mono sum feature is also implemented with SPDM data input by summing the data from both rising and falling clock edges.
Active emissions-limiting, edge-rate limiting, and overshoot control circuitry greatly reduce EMI. A filterless spread-spectrum modulation scheme eliminates the need for output filtering found in traditional Class D devices and reduces the component count of the solution.
The IC is available in 9-pin WLP (1.345mm x 1.435mm x 0.64mm) and 16-pin TQFN (3mm x 3mm x 0.75mm) packages and is specified over the -40℃ to +85℃ temperature range.
MAX98358主要特性:
Single-Supply Operation (2.5V to 5.5V)
3.2W Output Power into 4Ω at 5V
1.8mA Quiescent Current (VDD = 3.7V)
92% Efficiency (RL = 8Ω, POUT = 1.5W)
29μVRMS Output Noise (AV = 6dB)
Low 0.015% THD+N at 1kHz
Supported PDM_CLK Rates of 1.84MHz–4.32MHz and 5.28MHz–8.64MHz
Supports Left, Right, or Left/2 + Right/2 Outputs
Sophisticated Edge Rate Control Enables Filterless Class D Outputs
77dB PSRR at 217Hz
Low RF Susceptibility Rejects TDMA Noise from GSM Radios
Extensive Click-and-Pop Reduction Circuitry
Robust Short-Circuit and Thermal Protection
Available in Space-Saving Packages: 1.345mm x 1.435mm WLP (0.4mm Pitch) 3mm x 3mm TQFN
MAX98358應用:
Notebook and Netbook Computers
Cellular Phones
Tablets
Portable Media Players

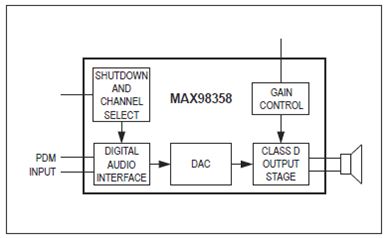

圖1.MAX98358簡化框圖
圖2.MAX98358立體聲工作電路圖
音頻接口板AUDINT1
The Maxim Audio Interface 1 (AUDINT1) board providesboth an I2C and I2S interface to facilitate the evaluationof compatible Maxim Development (DEV) boards. MaximDEV boards that are evaluated with the AUDINT1 interfaceboard can require custom GUI software, which is availableas a download from Maxim’s evkit-software web page.
The AUDINT1 board and a compatible DEV board areordered together as an evaluation system (EV system).
Ordering information for EV systems is located in the EVsystem data sheet.Refer to the appropriate EV system data sheet for quickstart and detailed operating instructions.
The AUDINT1 board is provided as part of selected Maximevaluation systems (EV system) to evaluate Maxim partsonly. The use of the AUDINT1 board as a development target is not supported. Refer to the MAXQ2000 evaluationkit data sheet for this purpose.
音頻接口板AUDINT1優(yōu)勢和特性:
●● USB Powered (+5V)
●● USB-to-I2C (USB CONTROL)
●● USB-to-I2S (USB AUDIO)
●● On-Board Master Clock Sources
●● On-Board LDOs (+1.2V, +1.8V, +3.3V)
●● Compatible with Standard FTDI VCP Drivers
●● Fully Assembled and Tested

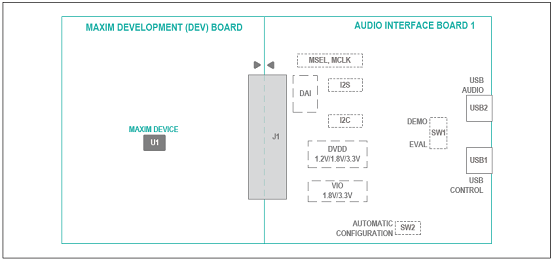

圖3.音頻接口板AUDINT1簡化EV系統(tǒng)框圖

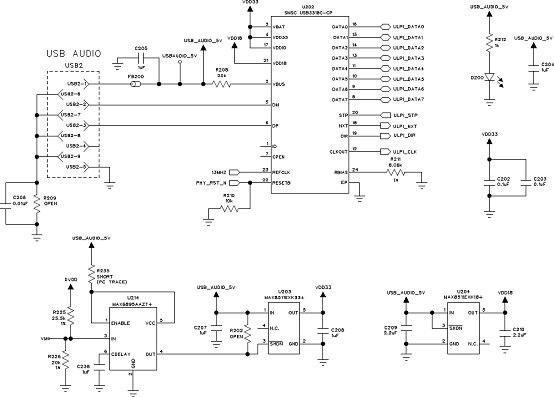

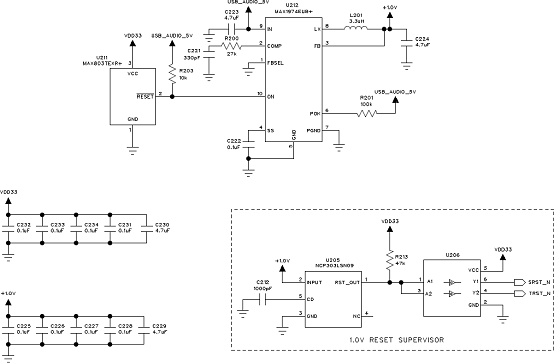

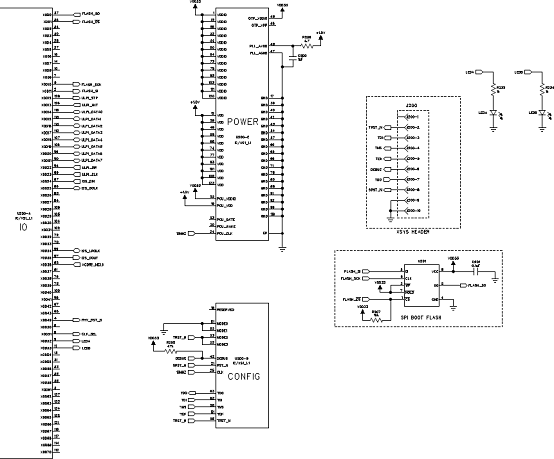

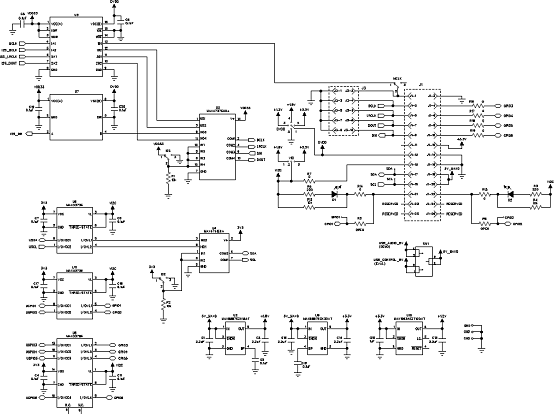

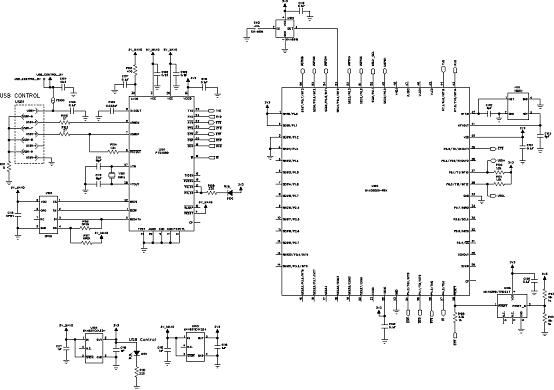

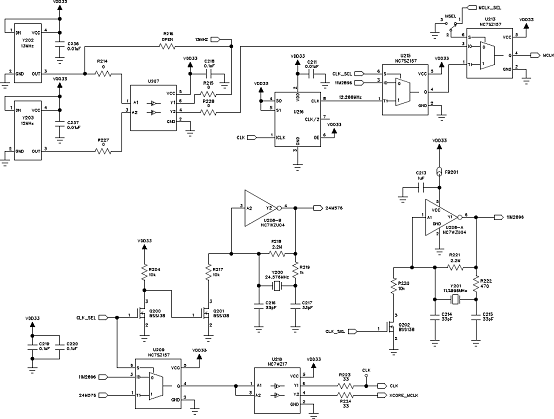

圖4.音頻接口板AUDINT1電路圖(1)
圖5.音頻接口板AUDINT1電路圖(2)
圖6.音頻接口板AUDINT1電路圖(3)
圖7.音頻接口板AUDINT1電路圖(4)
圖8.音頻接口板AUDINT1電路圖(5)
圖9.音頻接口板AUDINT1電路圖(6)

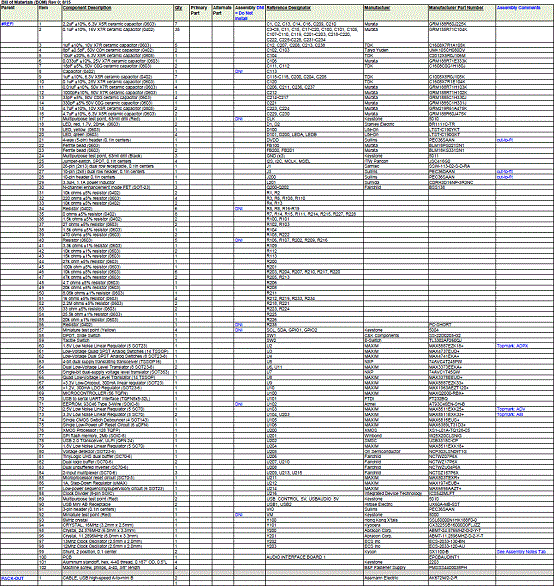

音頻接口板AUDINT1材料清單:

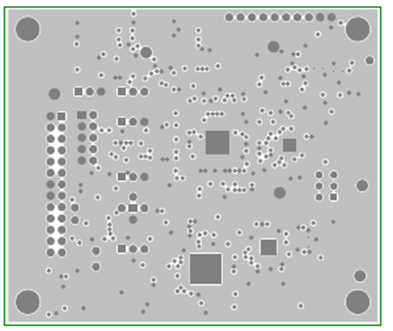

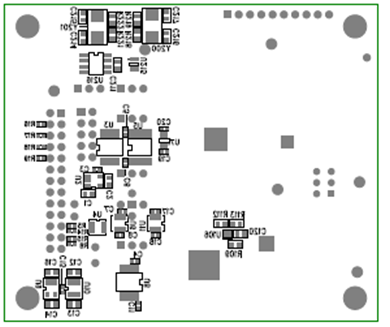

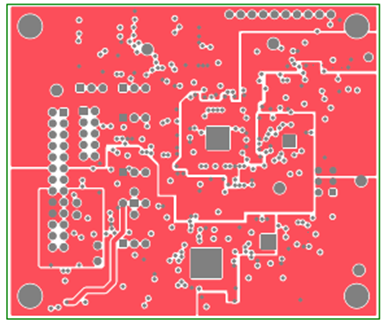

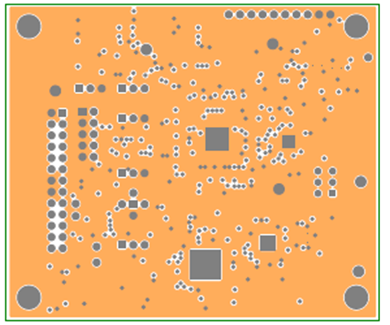

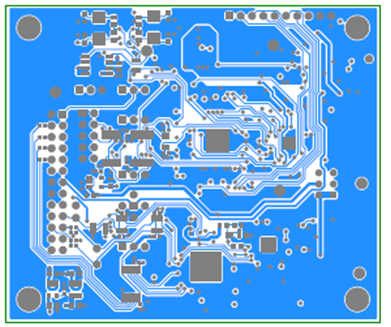

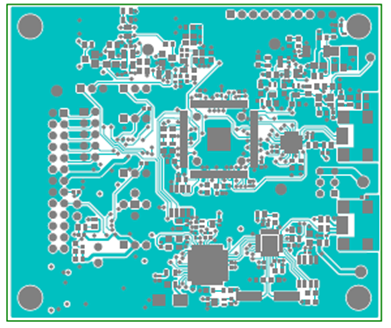

圖10.音頻接口板AUDINT1 PCB設計圖(1)
圖11.音頻接口板AUDINT1 PCB設計圖(2)
圖12.音頻接口板AUDINT1 PCB設計圖(3)
圖13.音頻接口板AUDINT1 PCB設計圖(4)
圖14.音頻接口板AUDINT1 PCB設計圖(5)
圖15.音頻接口板AUDINT1 PCB設計圖(6)
圖16.音頻接口板AUDINT1 PCB設計圖(7)
圖17.音頻接口板AUDINT1 PCB設計圖(8) |
| |
|
|
|
|
|
| |
|
| |
|
|
