產品概述
高端音頻設備已是當今消費者市場的主流，在人人必備的個人音樂播放器和高清多媒體設備等炙手可熱的消費電子產品的刺激下，消費者期望音樂座、柱形音箱以及數字有源揚聲器等時尚家庭娛樂設備擁有高保真級音質。盡可能地降低高效D類功率放大器產生的熱量，是實現小型散熱器和纖薄音箱設計的關鍵技術。意法半導體最新的Sound Terminal芯片STA350BW將D類功放的能效提升至全新的境界，讓設計人員能夠設計輸出功率高達50W且無需散熱器的纖薄型音頻產品。
如其它Sound Terminal系列產品一樣，STA350BW集成了數字音頻處理器和意法半導體首創的強化性能創新技術，如可提升音頻清晰度和系統可靠性的多頻帶動態范圍壓縮技術（MDRC）。這款系統級芯片能修正不理想的揚聲器特性，并新增多項強化技術，如可實現出色低音性能的優化低頻響應特性。芯片集成的保護功能可有效防止各種失效狀況影響系統正常運行，并可在運行時自動診斷電路，有助于防范系統失效，進而提高應用的總體可靠性。
STA350BW的功率級采用意法半導體獨有的FFXTM技術，實現全數字音頻流不間斷傳輸至揚聲器。新一代產品為客戶提供四個運行時輸出配置選擇，可支持多種功率放大輸出模式，包括2.0、2.1或1.0聲道、或2.0聲道加1個外部超低音揚聲器PWM輸出。
STA350BW的主要特性：
· 50W立體聲輸出，無需外部散熱器
· FFX技術將數字音頻流直接傳輸至揚聲器
· 內置系統保護和性能優化功能
· 與Sound Terminal系列芯片的引腳和軟件相互兼容
· 下嵌散熱片PowerSSO 36引腳封裝，可支持簡易的低成本系統設計
采用強化散熱性能的Power SSO36封裝
性能特點
Wide-range supply voltage
– 5 V to 26 V (operating range)
– 30 V (absolute maximum rating)
Four power output configurations
– 2 channels of ternary PWM (stereo mode)
(2 x 50 W into 6 at 25 V)
– 3 channels - left, right using binary and LFE
using ternary PWM (2.1 mode) (2 x 18 W +
1 x 40W into 2 x 4 , 1 x 8 at 25 V)
– 2 channels of ternary PWM (2 x 50 W) +
stereo lineout ternary
– 1 channel of ternary PWM as mono-BTL
(1 x 90 W into 3 at 24.5 V)
FFX™ 100 dB SNR and dynamic range
Selectable 32 to 192 kHz input sample rates
I2C control with selectable device address
Digital gain/attenuation +42 dB to -80 dB with
0.125 dB/step resolution
Soft-volume update with programmable ratio
Individual channel and master gain/attenuation
Two independent DRCs configurable as a
dual-band anti-clipper (B2DRC) or independent
limiters/compressors
EQ-DRC for DRC based on filtered signals
Dedicated LFE processing for bass boosting
with 0.125 dB/step resolution
Audio presets:
– 15 preset crossover filters
– 5 preset anti-clipping modes
– Preset nighttime listening mode
Individual channel and master soft/hard mute
Independent channel volume and DSP bypass
Automatic zero-detect mute
Automatic invalid input-detect mute
I2S input data interface
Input and output channel mapping
Up to 8 user-programmable biquads per
channel
3 coefficient banks for EQ presets storing with
fast recall via I2C interface
Extended coefficient dynamic up to -4..4 for
easy implementation of high shelf filters
Bass/treble tones and de-emphasis control
Selectable high-pass filter for DC blocking
Advanced AM interference frequency
switching and noise suppression modes
Selectable high or low bandwidth
noise-shaping topologies
Selectable clock input ratio
96 kHz internal processing sample rate with
quantization error noise shaping for very low
cutoff frequency filters
Thermal overload and short-circuit protection
embedded
Video apps: 576 x Fs input mode supported
Fully compatible with STA339BW and STA339BWS

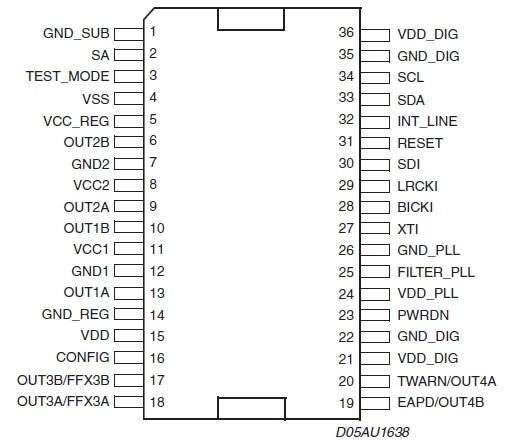

管教排列

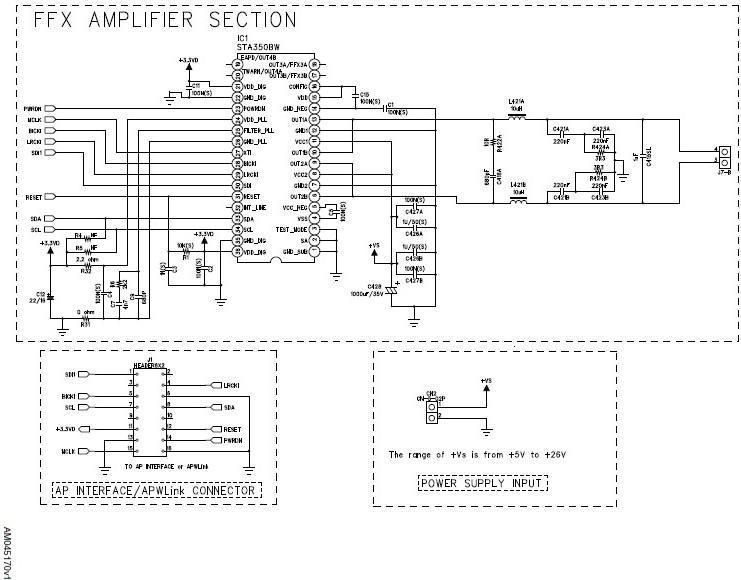

典型應用原理圖
